Utah Transit Authority, Light Rail

Weber County to Salt Lake, UT

Spring 2005 - Mid-2008

Significant reduction in sub-ballast and labor costs with Tensar geogrid solution.

  • Contractor: Commuter Rail Constructors
  • Owner: Utah Transit Authority
  • Engineer: Terracon Consultants
Client's Challenge

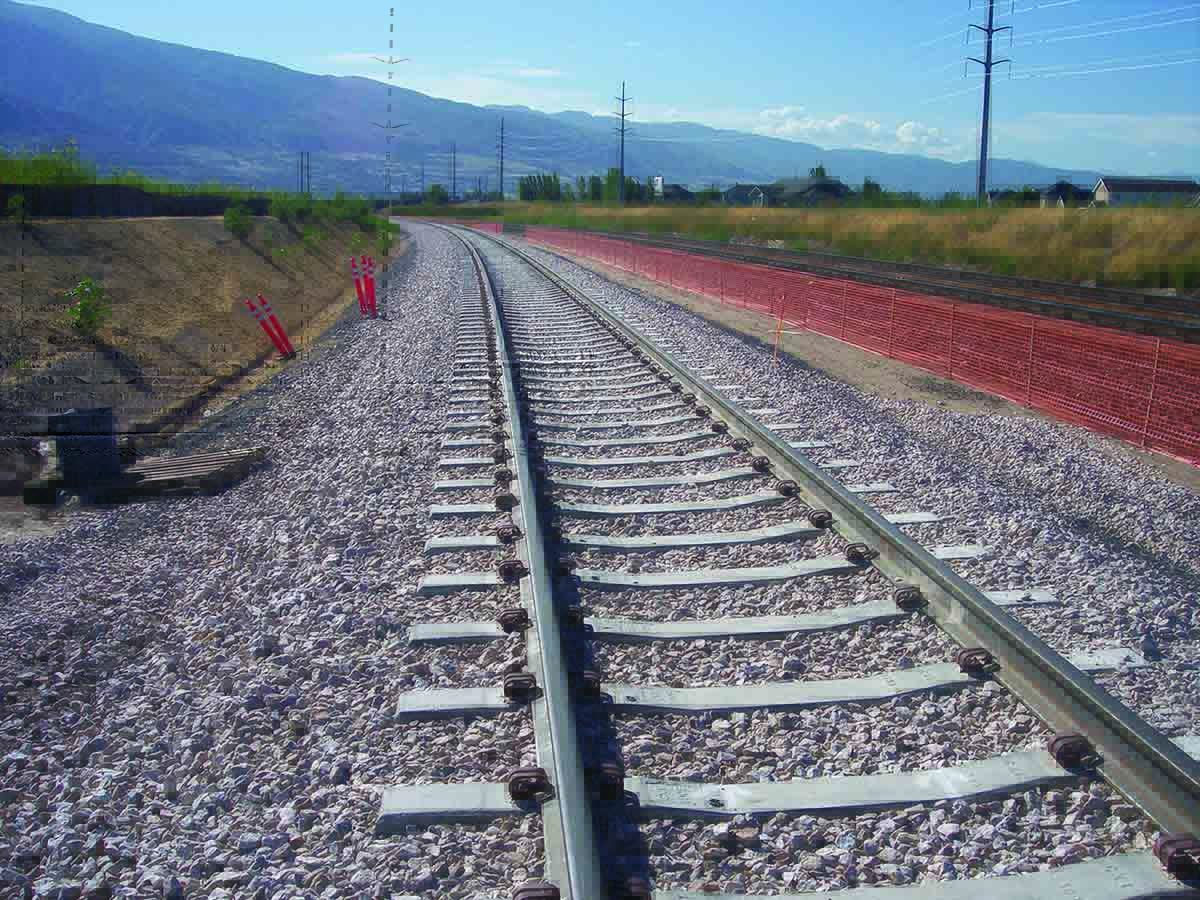

The 44-mile-long FrontRunner commuter rail line was being constructed on an existing right-of-way that ran parallel with the Wasatch Mountains. The area is part of a natural drainage basin that included abundant soft soils and shallow groundwater. The subgrade consisted of low- to medium-strength cohesive soils and loose to dense sand. A traditional design would have used thick sections of sharp stone, sub-ballast, and ballast to help bridge the soft soils. Given the extensive soft soil conditions and costs associated with importing high-quality stone, this approach would add considerable budget constraints.

Tensar Solution

The project engineer developed a design using Tensar's design software that reduced the required sub-ballast thickness. By incorporating Tensar geogrid, they could provide the stabilization needed to carry heavy-rail traffic while reducing the sub-ballast layer from 12 inches to 8 inches. Using Tensar geogrids also avoided groundwater and moving over 900 feet of buried utilities, which was a huge savings all on its own.
